Protecting Your Home
Electrical safety isn't exactly the most thrilling topic, is it? But trust me, getting it right is way more exciting than dealing with the consequences of a faulty electrical system. One of the key players in home electrical safety is the Residual Current Circuit Breaker, or RCCB. You might also hear it called a Residual Current Device (RCD), but essentially, they both do the same job: protecting you and your family from electric shock. So, how do you navigate the world of RCCBs and choose the right one for your home?
Think of an RCCB as a super-sensitive bodyguard for your electrical circuits. It constantly monitors the current flowing in and out of a circuit. If it detects even a tiny imbalance — indicating that some current is leaking, perhaps through someone accidentally touching a live wire — it instantly trips the circuit, cutting off the power and preventing a potentially fatal electric shock.
Why is this so important? Regular circuit breakers are designed to protect against overloads and short circuits, like when too many appliances are running at once or when wires touch each other. But they often don't react quickly enough to protect against electric shock. An RCCB is much faster and more sensitive, making it a critical layer of protection.
Choosing the right RCCB isn't as complicated as it might seem. Let's break it down into some easy-to-understand steps.
1. Understanding Your Home's Electrical Needs
Before you even think about browsing through RCCB options, take a moment to assess your home's electrical system. This isn't about becoming an electrician overnight; it's about understanding the basics of how your electricity is distributed.
Start by locating your electrical panel (also known as the consumer unit or fuse box). This is the central hub where all the circuits in your home originate. Look for labels that indicate which circuits serve which areas or appliances. For example, you might see labels like "Kitchen Outlets," "Living Room Lights," or "Upstairs Bedrooms."
Consider which circuits are most likely to pose a risk of electric shock. These are typically circuits that serve areas where water is present, such as bathrooms, kitchens, and outdoor areas. Also, think about circuits that power appliances that are often touched, like washing machines, dishwashers, and power tools. These are prime candidates for RCCB protection.
While you're at the electrical panel, take a look at the existing circuit breakers. Note the amperage (A) rating of each breaker. This will give you an idea of the current carrying capacity of each circuit. You'll need this information when selecting the appropriate RCCB.
2. Choosing the Right Type of RCCB
Now that you have a better understanding of your home's electrical layout, it's time to explore the different types of RCCBs available. There are primarily two main types to consider: RCCBs and RCBOs.
An RCCB (Residual Current Circuit Breaker) is a device that only provides residual current protection. It doesn't offer overload or short circuit protection. It's typically used to protect multiple circuits at once, such as a group of bathroom outlets or all the outdoor circuits. A single RCCB can protect multiple downstream circuits.
An RCBO (Residual Current Breaker with Overload protection) combines the functions of an RCCB and a circuit breaker into a single unit. It provides both residual current protection and protection against overloads and short circuits. This means that if either a current leakage or an overload occurs, the RCBO will trip and disconnect the circuit. RCBOs are often used to protect individual circuits, such as a specific appliance or a critical area like a server room.
The best choice for your home depends on your specific needs and preferences. If you want to provide residual current protection to multiple circuits at once, an RCCB might be a good option. If you prefer to protect individual circuits with both residual current and overload protection, RCBOs are the way to go. Many electricians recommend using RCBOs for all circuits for maximum protection.
3. Selecting the Correct Current Rating and Sensitivity
Once you've decided on the type of RCCB, you need to choose the correct current rating and sensitivity. The current rating refers to the maximum amount of current that the RCCB can handle without tripping under normal conditions. The sensitivity, also known as the trip current, refers to the amount of leakage current that will cause the RCCB to trip.
The current rating of the RCCB should be equal to or slightly higher than the current rating of the circuit it's protecting. For example, if you're protecting a 20-amp circuit, you should choose an RCCB with a current rating of 20 amps or higher. It's generally better to err on the side of caution and choose a slightly higher rating.
The sensitivity of the RCCB is typically measured in milliamperes (mA). For most residential applications, a sensitivity of 30mA is recommended. This means that the RCCB will trip if it detects a leakage current of 30mA or more. This is considered to be a safe level that will protect against electric shock.
Using an RCCB with too high of a sensitivity could cause nuisance tripping. However, too low of a sensitivity could lead to it not tripping when it should, failing to protect you from dangerous electrical faults.
4. Installation and Testing
Here's a golden rule: when it comes to electrical work, unless you're a qualified electrician, leave it to the professionals! Installing an RCCB involves working with live electrical wires, and making a mistake can have serious consequences, including electric shock or fire.
A qualified electrician will be able to assess your home's electrical system, recommend the appropriate RCCB, and install it safely and correctly. They will also be able to test the RCCB to ensure that it's functioning properly. This testing is crucial to verify that the RCCB will trip when it's supposed to.
After the installation, the electrician should provide you with a certificate of compliance, which is a document that confirms that the electrical work has been carried out in accordance with safety regulations. Keep this certificate in a safe place, as you may need it for insurance purposes or when selling your home.
Even after the installation, it's a good idea to periodically test the RCCB yourself. Most RCCBs have a test button that you can press to simulate a fault current and verify that the device trips. Test it every few months to ensure it's still working properly. If it doesn't trip, contact a qualified electrician immediately.
5. Choosing a Reputable Brand and Supplier
Like with any product, the quality of an RCCB can vary depending on the brand and manufacturer. It's important to choose a reputable brand that is known for producing reliable and safe electrical equipment.
Some well-known brands of RCCBs include Siemens, Schneider Electric, ABB, and Eaton. These brands have a long history of producing high-quality electrical products and are widely trusted by electricians and homeowners alike.
When purchasing an RCCB, make sure to buy it from a reputable supplier. This will ensure that you're getting a genuine product that meets all the necessary safety standards. Avoid buying RCCBs from unknown or unverified sources, as they may be counterfeit or substandard products that could pose a safety risk.
Don't just look at the price. While it's tempting to go for the cheapest option, remember that you're dealing with electrical safety. Investing in a quality RCCB from a reputable brand is well worth the peace of mind.

Difference Between MCB, MCCB, MPCB, RCCB, RCBO Electrical Protection
Frequently Asked Questions (FAQs)
6. Q
A: A normal circuit breaker protects against overloads (too much current being drawn) and short circuits (a direct connection between live and neutral wires). An RCCB, on the other hand, detects tiny imbalances in the current flowing in and out of a circuit, which indicates a leakage current and potential electric shock hazard. Think of a standard circuit breaker as preventing your circuits from overheating, and an RCCB as preventing you from overheating (in a very literal, shocking way!).
7. Q
A: It's recommended to test your RCCB every three to six months. Simply press the test button on the device. If the RCCB trips (cuts off the power), it's working correctly. If it doesn't trip, you should contact a qualified electrician immediately to have it inspected and potentially replaced.
8. Q
A: While DIY projects can be fun and rewarding, electrical work is best left to the professionals. Installing an RCCB involves working with live electrical wires, which can be extremely dangerous if you're not properly trained. It's always best to hire a qualified electrician to ensure the installation is done safely and correctly.
9. Q
A: If your RCCB is tripping frequently, it could indicate a number of issues. One common cause is a faulty appliance that's leaking current. Try unplugging appliances one by one to see if you can isolate the culprit. Another possibility is damaged wiring or a loose connection. In any case, it's best to consult a qualified electrician to diagnose and fix the problem.

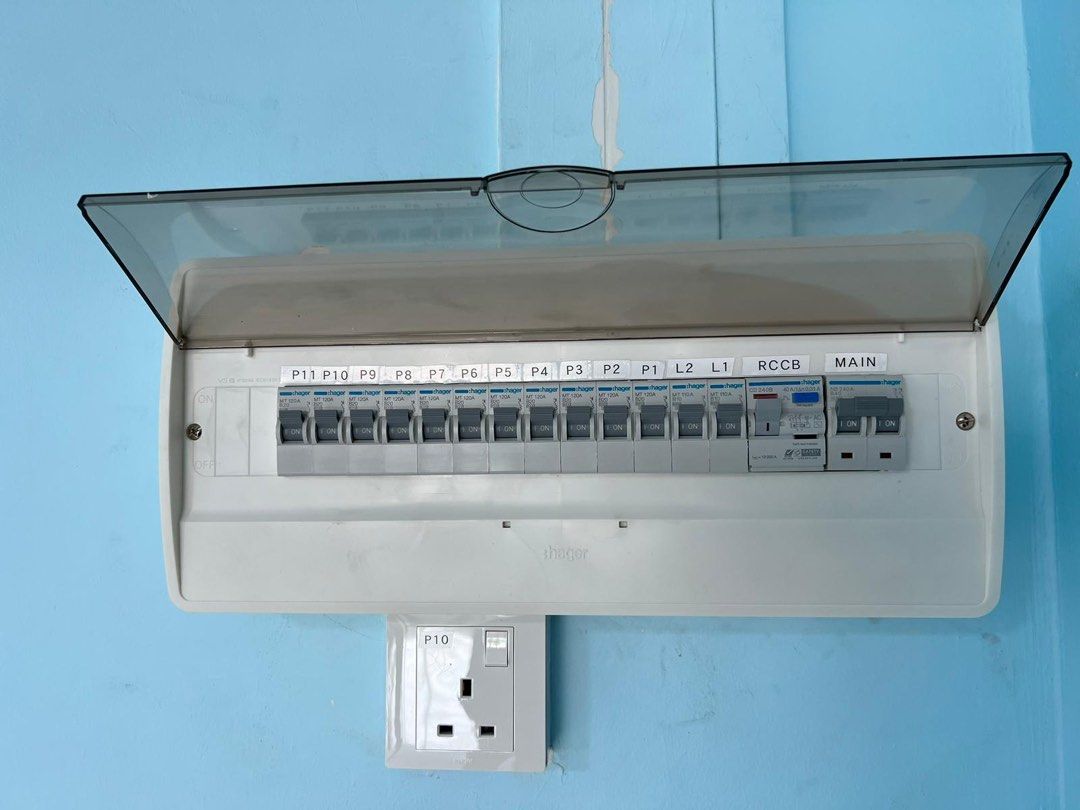

RCCB Or ELCB Replacement . New DB , Licensing Electrician HDB
