Understanding Electrical Loops

1. What Exactly is a Loop in a Circuit?

Okay, picture this: you're tracing a path through an electrical circuit, like following a breadcrumb trail. A "loop" is basically a closed path within that circuit. Imagine a road that starts and ends at the same place that's your electrical loop. It's a complete route that electricity can flow through, starting at a voltage source (like a battery) and eventually returning to that same source. No dead ends allowed! Think of it like a really enthusiastic roundabout for electrons.

Why do we care about loops? Well, understanding them is absolutely crucial for analyzing circuits. Each loop has its own voltage and current characteristics, and knowing these helps us figure out how the entire circuit behaves. Without loops, your electronics wouldn't do much! They'd just sit there looking pretty, probably collecting dust. And who wants that?

In essence, a loop provides a continuous channel for current to circulate. It's a fundamental concept that underpins many circuit analysis techniques, like Kirchhoff's Voltage Law (KVL), which we'll touch upon a bit later. So, the next time you see a circuit diagram filled with squiggly lines and components, remember those closed paths those are your loops, the unsung heroes of electronics.

Consider a simple circuit with a battery and a resistor. The path from one terminal of the battery, through the resistor, and back to the other terminal of the battery forms a single, solitary loop. Current flows continuously around this loop. Now, add another resistor in parallel. Boom! You've got multiple loops. Each loop, with its own set of rules, contributing to the overall function of the circuit. See? Loops are everywhere!

Kirchhoff's Voltage Law (KVL) and Loops

2. How KVL Helps Us Understand Loops

Now, let's introduce Kirchhoff's Voltage Law, or KVL for short. KVL states that the sum of all the voltages around any closed loop in a circuit must equal zero. Sounds a bit abstract, doesn't it? Let's break it down. Imagine pushing a swing; you put energy in, and then the swing eventually comes back to where you started. Similarly, in a loop, the voltage gains (like from a battery) must equal the voltage drops (like across resistors). What goes up, must come down or in this case, what the battery provides, the components must use.

Essentially, KVL is like a budget for voltage within a loop. All the voltage supplied by the battery has to be used up by the components in the loop. This law allows us to calculate unknown voltages within a loop, which is incredibly handy when analyzing more complex circuits. Think of it as a cosmic accountant, ensuring that the voltage ledger always balances. And if it doesn't balance? Well, Houston, we have a problem!

Using KVL is straightforward once you get the hang of it. You simply trace the loop, adding up all the voltage gains and subtracting all the voltage drops. Set the whole thing equal to zero, and solve for your unknown variable. It's like solving a simple algebraic equation, but instead of 'x', you're solving for the voltage across a resistor. Piece of cake, right? Okay, maybe a slightly complicated cake, but still delicious!

KVL combined with Ohms Law, which relates voltage, current, and resistance (V = IR), gives you powerful tools for understanding and solving almost any DC circuit problem. These two laws work hand-in-hand to provide a comprehensive framework for circuit analysis. So, master these concepts, and you'll be well on your way to becoming a circuit wizard, capable of conjuring solutions out of thin air (or, more accurately, out of a schematic diagram).

Types of Loops in Electrical Circuits

3. Different Kinds of Loops You Might Encounter

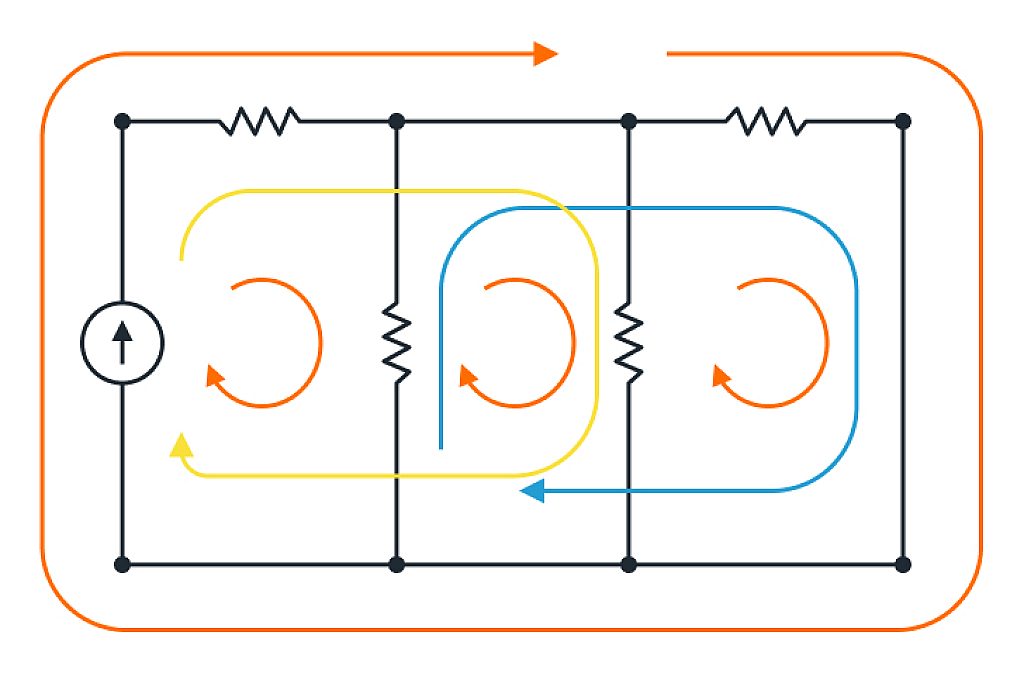

Not all loops are created equal. While they all adhere to the basic principles we've discussed, they can come in different flavors depending on the circuit's topology. A "mesh" is the simplest type of loop it's a loop that doesn't contain any other loops within it. Think of it as a basic building block for more complex circuits.

Then you have loops that do contain other loops. These are just... well, loops. They can be more difficult to analyze, as current can split and flow in multiple directions. Imagine a river that branches into smaller streams before converging again; thats analogous to current flow in a complex looped network.

Another important distinction is between independent and dependent loops. An independent loop is one whose current cannot be expressed as a combination of currents from other loops. In other words, it's a unique path with its own distinct current. Dependent loops, on the other hand, have currents that can be expressed in terms of other loop currents. Knowing which loops are independent is critical for applying methods like mesh analysis.

Recognizing these different types of loops helps simplify the analysis process. By breaking down a complex circuit into its constituent loops, you can apply KVL and Ohm's Law to each loop individually, and then combine the results to understand the overall behavior of the circuit. It's like dissecting a frog maybe a bit less messy, and hopefully less ethically questionable.

Why Understanding Loops is Crucial

4. The Importance of Loops in Circuit Design and Troubleshooting

So, why is all this loop talk so important? Well, understanding loops is absolutely fundamental to both designing and troubleshooting electrical circuits. When designing a circuit, you need to ensure that the current flows correctly through all the components. This requires careful consideration of the loops in the circuit and the voltages and currents within them.

If you're troubleshooting a circuit, knowing how to identify and analyze loops can help you pinpoint the source of the problem. For instance, if a particular component isn't receiving the correct voltage, you can trace the loop that contains that component to see if there's a problem elsewhere in the loop. Maybe a resistor has failed, or a connection is loose. By systematically analyzing the loops, you can narrow down the possibilities and quickly identify the culprit.

Furthermore, understanding loops is essential for preventing short circuits and other potentially dangerous situations. A short circuit is essentially a loop with very low resistance, allowing a large amount of current to flow. This can cause overheating, damage to components, and even fires. By carefully analyzing the loops in a circuit, you can identify potential short circuits and take steps to prevent them.

In short, mastering the concept of loops is not just a theoretical exercise; it's a practical skill that's essential for anyone working with electrical circuits. Whether you're designing the next generation of smartphones or simply trying to fix a faulty appliance, a solid understanding of loops will serve you well. It's like having a superpower the ability to see the invisible paths of current and control the flow of electricity. What's not to love?

Advanced Loop Analysis Techniques

5. Mesh Analysis and Nodal Analysis

Once you've got the basics of loops down, you can move on to more advanced techniques like mesh analysis. Mesh analysis is a method for solving circuits by applying KVL to each mesh (the simplest type of loop) in the circuit. It allows you to systematically calculate the currents flowing through each mesh, which then allows you to determine the voltages across all the components.

Another powerful technique is nodal analysis, which focuses on the nodes (the points where two or more components connect) in a circuit. Nodal analysis uses Kirchhoff's Current Law (KCL), which states that the sum of all currents entering and leaving a node must be zero. By applying KCL to each node, you can solve for the unknown node voltages, and then use Ohm's Law to calculate the currents flowing through the components.

Mesh analysis is generally easier to apply when the circuit has many voltage sources, while nodal analysis is often more convenient for circuits with many current sources. Both techniques provide powerful tools for analyzing complex circuits, and choosing the right one can save you a lot of time and effort. It's like choosing the right tool for the job using a screwdriver instead of a hammer, or a wrench instead of a pair of pliers. Knowing which tool to use when is half the battle.

These advanced techniques build upon the fundamental understanding of loops we've discussed. They allow you to tackle even the most complex circuits with confidence. So, keep practicing, keep experimenting, and keep pushing your understanding of loops to the next level. The world of electronics is vast and fascinating, and there's always something new to learn!
